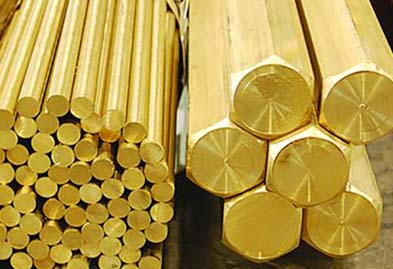

C23000 Red Brass (CDA 230 / C230 / 230 brass)
ASTM B134, ASTM B135, ASTM B43, SAE J461, ASTM B36 / EN: CuZn15, CW502L
We at Sunflex Metal Industries provide C23000 Red Brass, an excellent option that is renowned for its remarkable resilience against stress cracking and dezincification. This high-performance alloy is ideal for a variety of uses, such as condenser tubes, costume jewelry, fire hose couplings, and commercial water pipes. It is a dependable material for subterranean service lines, where corrosion resistance to a variety of potable waters is crucial, due to its mild strength and exceptional preservation of spring qualities.
In addition to being useful, C23000 Red Brass, also referred to as Nordic Brass, is highly regarded for its robustness and visual appeal in contemporary construction. C23000 stands out as a useful and appealing solution for a variety of industrial and design applications because to its adaptability and durable features. Please send an email to sales@sunflexfittings.com if you would like a quotation or further information. For any demands involving brass alloy, put your trust in Sunflex Metal Industries.
C23000 Red Brass uses:
C23000 Red Brass is commonly used in a variety of applications due to its durability and resistance properties. Typical uses include:
- Commercial Water Pipes: Ideal for underground service lines due to its resistance to corrosion from various potable waters.
- Costume Jewelry: Valued for its aesthetic appeal and durability in fashion accessories.
- Fire Hose Couplings: Used in firefighting equipment where reliability and strength are crucial.
- Zippers: Utilized in garment manufacturing for its combination of strength and corrosion resistance.
- Condenser and Heat Exchanger Tubes: Employed in HVAC systems for its excellent thermal conductivity and resistance to environmental factors.
- Architectural Elements: Popular in modern architecture for its visual appeal and durability in outdoor applications.
Specifications
| End Product | Specification |
| Bar | ASTM B36 |
| Fittings | ASME B16.29, B16.22 |
| Nipples | ASTM B687 |
| Pipe | ASME SB43, ASTM B698, B43 |
| Plate | ASTM B36 |
| Sheet | ASTM B36, SAE J461, J463 |
| Strip | ASTM B888, B36, SAE J463, J461 |
| Tube | ASTM B569, B698 |
| Tube, Condenser | ASME SB111, ASTM B111 |
| Tube, Finned | ASME SB359, ASTM B359 |
| Tube, Seamless | AMS 4553, ASME SB135, ASTM B135, FEDERAL WW-T-791, MILITARY MIL-T-20168, SAE J461, J463 |
| Tube, U-Bend | ASME SB395, ASTM B395 |
| Tube, Welded | ASME SB543, ASTM B587, B543 |
| Wire | ASTM B134 |
Chemical Composition
| Cu | Fe | Pb | Zn | |
| Min/Max | 84.0 – 86.0 | 0.05 | 0.05 | Rem |
| Nominals | 85.0000 | – | – | 15.0000 |
Mechanical Properties
| Temper | Sect. Size | Cold Work | Type Min | Temp | Tensile Strength | YS 0.05% UL |
YS 0.02% Offset |
YS 0.005% Offset |
Elong. | RH B |
RH C |
RH F |
RH 30T |
VH 500 |
BH 500 |
BH 3000 |
Shear Strgth |
Fatigue Strgth |
Izod Impact Strgth |
| – | in. | % | – | F | ksi | ksi | ksi | ksi | % | B | C | F | 30T | 500 | 500 | 3000 | ksi | ksi | ft-lb |
| – | mm. | – | – | C | MPa | MPa | MPa | MPa | – | – | – | – | – | – | – | – | MPa | MPa | J |
| FLAT PRODUCTS | |||||||||||||||||||
| H04 | 0.04 | 68 | 70 | 57 | – | – | – | – | – | – | – | – | – | – | 42 | – | |||
| H04 | 1 | 0 | TYP | 20 | 483 | 393 | – | – | 5 | 77 | – | – | 68 | – | – | – | 290 | – | 0 |
| OS070 | 0.04 | 68 | 39 | 10 | – | – | – | – | – | – | – | – | – | – | 31 | – | |||
| OS070 | 1 | 0 | TYP | 20 | 269 | 69 | – | – | 48 | – | – | 56 | 10 | – | – | – | 214 | – | 0 |
| M20 | 0 | 68 | 43 | – | – | – | – | – | – | – | – | – | – | – | – | – | |||
| M20 | 0 | 0 | TYP | 20 | 299 | – | – | – | – | – | – | – | – | – | – | – | – | – | 0 |
| OS015 | 0.04 | 68 | 45 | 18 | – | – | – | – | – | – | – | – | – | – | 33 | – | |||
| OS015 | 1 | 0 | TYP | 20 | 310 | 124 | – | – | 42 | – | – | 71 | 38 | – | – | – | 228 | – | 0 |
| H02 | 0.04 | 68 | 57 | 49 | – | – | – | – | – | – | – | – | – | – | 37 | – | |||
| H02 | 1 | 0 | TYP | 20 | 393 | 338 | – | – | 12 | 65 | – | – | 60 | – | – | – | 255 | – | 0 |
| H06 | 0.04 | 68 | 78 | 61 | – | – | – | – | – | – | – | – | – | – | 44 | – | |||
| H06 | 1 | 0 | TYP | 20 | 538 | 421 | – | – | 4 | 83 | – | – | 72 | – | – | – | 303 | – | 0 |
| OS035 | 0.04 | 68 | 41 | 14 | – | – | – | – | – | – | – | – | – | – | 31 | – | |||
| OS035 | 1 | 0 | TYP | 20 | 283 | 97 | – | – | 46 | – | – | 63 | 22 | – | – | – | 214 | – | 0 |
| H08 | 0.04 | 68 | 84 | 63 | – | – | – | – | – | – | – | – | – | – | 46 | – | |||
| H08 | 1 | 0 | TYP | 20 | 579 | 434 | – | – | 3 | 86 | – | – | 74 | – | – | – | 317 | – | 0 |
| OS050 | 0.04 | 68 | 40 | 12 | – | – | – | – | – | – | – | – | – | – | 31 | – | |||
| OS050 | 1 | 0 | TYP | 20 | 276 | 83 | – | – | 47 | – | – | 59 | 14 | – | – | – | 214 | – | 0 |
| H01 | 0 | 68 | 49 | – | – | – | – | – | – | – | – | – | – | – | – | – | |||
| H01 | 0 | 0 | TYP | 20 | 338 | – | – | – | – | 45 | – | – | 48 | – | – | – | – | – | 0 |
| OS025 | 0.04 | 68 | 43 | 16 | – | – | – | – | – | – | – | – | – | – | 32 | – | |||
| OS025 | 1 | 0 | TYP | 20 | 296 | 110 | – | – | 44 | – | – | 66 | 28 | – | – | – | 221 | – | 0 |
| PIPE | |||||||||||||||||||
| OS015 | 0 | 68 | 44 | 18 | – | – | – | – | – | – | – | – | – | – | – | – | |||
| OS015 | 0 | 0 | TYP | 20 | 303 | 124 | – | – | 45 | – | – | 71 | – | – | – | – | – | – | 0 |
| TUBE | |||||||||||||||||||
| H80 | 0.06 | 68 | 70 | 58 | – | – | – | – | – | – | – | – | – | – | – | – | |||
| H80 | 1.65 | 35 | TYP | 20 | 483 | 400 | – | – | 8 | 77 | – | – | 68 | – | – | – | – | – | 0 |
| H55 | 0.06 | 68 | 50 | 40 | – | – | – | – | – | – | – | – | – | – | – | – | |||
| H55 | 1.65 | 15 | TYP | 20 | 345 | 276 | – | – | 30 | 55 | – | – | 54 | – | – | – | – | – | 0 |
| OS050 | 0.06 | 68 | 40 | 12 | – | – | – | – | – | – | – | – | – | – | – | – | |||
| OS050 | 1.65 | 0 | TYP | 20 | 276 | 83 | – | – | 55 | – | – | 60 | 15 | – | – | – | – | – | 0 |
| OS015 | 0.06 | 68 | 44 | 18 | – | – | – | – | – | – | – | – | – | – | – | – | |||
| OS015 | 1.65 | 0 | TYP | 20 | 303 | 124 | – | – | 45 | – | – | 71 | 38 | – | – | – | – | – | 0 |
| WIRE | |||||||||||||||||||
| OS025 | 0.08 | 68 | 43 | – | – | – | – | – | – | – | – | – | – | – | 32 | – | |||
| OS025 | 2 | 0 | TYP | 20 | 296 | – | – | – | – | – | – | – | – | – | – | – | 221 | – | 0 |
| H02 | 0.08 | 68 | 72 | – | – | – | – | – | – | – | – | – | – | – | 43 | – | |||
| H02 | 2 | 0 | TYP | 20 | 496 | – | – | – | 8 | – | – | – | – | – | – | – | 296 | – | 0 |
| H08 | 0.08 | 68 | 105 | – | – | – | – | – | – | – | – | – | – | – | 54 | – | |||
| H08 | 2 | 0 | TYP | 20 | 724 | – | – | – | – | – | – | – | – | – | – | – | 372 | – | 0 |
| OS035 | 0.08 | 68 | 41 | – | – | – | – | – | – | – | – | – | – | – | 31 | – | |||
| OS035 | 2 | 0 | TYP | 20 | 283 | – | – | – | 48 | – | – | – | – | – | – | – | 214 | – | 0 |
| H04 | 0.08 | 68 | 88 | – | – | – | – | – | – | – | – | – | – | – | 48 | – | |||
| H04 | 2 | 0 | TYP | 20 | 607 | – | – | – | 6 | – | – | – | – | – | – | – | 331 | – | 0 |
| OS015 | 0.08 | 68 | 45 | – | – | – | – | – | – | – | – | – | – | – | 33 | – | |||
| OS015 | 2 | 0 | TYP | 20 | 310 | – | – | – | – | – | – | – | – | – | – | – | 228 | – | 0 |
| H00 | 0.08 | 68 | 50 | – | – | – | – | – | – | – | – | – | – | – | 35 | 20 | |||
| H00 | 2 | 0 | TYP | 20 | 345 | – | – | – | 25 | – | – | – | – | – | – | – | 241 | 138 | 0 |
| H01 | 0.08 | 68 | 59 | – | – | – | – | – | – | – | – | – | – | – | 38 | – | |||
| H01 | 2 | 0 | TYP | 20 | 407 | – | – | – | 11 | – | – | – | – | – | – | – | 262 | – | 0 |
Physical Properties
| Product Property | US Customary | Metric |
| Coefficient of Thermal Expansion | 10.4 ÌÎ?̴ÌÁ10-6 per ÌÎ?̴åÁF (68-572 ÌÎ?̴åÁF) | 18.7 ÌÎ?̴ÌÁ 10 6? per ÌÎ?̴åÁC (20-300 C) |
| Density | 0.316 lb/in3 @ 68 F | 8.75 gm/cm3 @ 20 C |
| Electrical Conductivity | 37 %IACS @ 68 F | 0.216 MegaSiemens/cm @ 20 C |
| Electrical Resistivity | 28.0 ohms-cmil/ft @ 68 F | 4.65 microhm-cm @ 20 C |
| Melting Point Liquid US | 1880 F | 1027 C |
| Melting Point Solid US | 1810 F | 988 C |
| Modulas of Elasticity in Tension | 17000 ksi | 117000 MPa |
| Modulas of Rigidity | 6400 ksi | 44130 MPa |
| Specific Gravity | 8.75 | 8.75 |
| Specific Heat Capacity | 0.09 Btu/lb/ÌÎ?̴åÁF @ 68 F | 377.1 J/kg ÌÎ?̴ÌÁ ÌÎ?̴åÁK at 293 K |
| Thermal Conductivity | 92.0 Btu ÌÎ?̴ÌÁ ft/(hr ÌÎ?̴ÌÁ ft2 ÌÎ?̴ÌÁÌÎ?̴åÁF) @ 68 F | 159.2 W/m ÌÎ?̴ÌÁ ÌÎ?̴åÁK at 20 C |
Fabrication
| Joining Technique | Suitability |
| Brazing | Excellent |
| Butt Weld | Good |
| Capacity for Being Cold Worked | Excellent |
| Capacity for Being Hot Formed | Good |
| Coated Metal Arc Welding | Not Recommended |
| Gas Sheilded Arc Welding | Good |
| Machinability rating | 30 |
| Oxyacetylene Welding | Good |
| Seam Weld | Not Recommended |
| Soldering | Excellent |
| Spot Weld | Fair |
Applications & Industries where our C23000 Red Brass are used
Sunflex Metal Industries is a prominent supplier & exporter of C23000 Red Brass which is widely used in the following industries & applications:
C23000 Red Brass are mainly used in Commercial Water Pipes, Costume Jewelry, Fire Hose Couplings, Zippers, Condenser and Heat Exchanger Tubes, Architectural Elements, etc.
