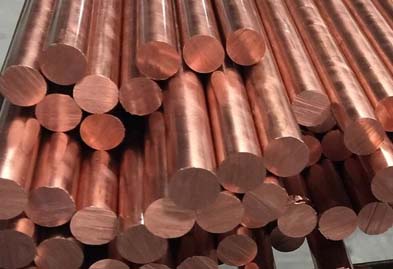

C19160 Leaded Nickel Copper
EN: CuNi1Pb1P
At Sunflex Metal Industries, we offer the C19160 Leaded Nickel Copper alloy, a premier choice for high-performance connectors in the electronics industry. This advanced free-cutting bronze alloy is designed to deliver exceptional machinability, ensuring precise manufacturing and close diameter control. With a unique blend of high strength, excellent electrical conductivity, and outstanding corrosion resistance, C19160 stands out as an ideal material for demanding applications.
Our C19160 alloy provides superior cold heading capabilities and a smooth surface finish, coupled with consistent micro-structural integrity. For more information on how C19160 can enhance your projects or to request a quote, contact us at sales@sunflexfittings.com. Trust Sunflex Metal Industries for top-quality materials that meet your exacting standards.
C19160 Leaded Nickel Copper uses:
C19160 Leaded Nickel Copper alloy is highly valued for its versatility and performance in various applications. Here are some key uses:
- Electronics Connectors: Its excellent electrical conductivity and machinability make it ideal for producing high-quality connectors and terminals in electronic devices.
- Precision Machined Parts: The alloy’s free-cutting properties ensure ease of machining, making it suitable for complex and precision-engineered components.
- Automotive Components: Its strength and corrosion resistance are beneficial for automotive parts that require durability and reliability.
- Aerospace Applications: The high strength-to-weight ratio and consistent micro-structural properties make it a good choice for aerospace components.
- Industrial Equipment: Used in various industrial machinery and equipment where high wear resistance and strength are necessary.
- Instrumentation: Ideal for parts in measuring and control instruments that need to maintain accuracy and resist environmental wear.
Density: 0.320 lb/in3 at 68 F
Specifications
| Treatment | Temp./Time – US | Temp./Time SI |
| Stress Temperature | – | åÊ |
| Solution Minimum | 1300 | 705 |
| Solution Maximum | 1450 | 788 |
| Solution Time | – | |
| Solution Medium | None | – |
| Precipitation Value | 800 | 427 |
| Annealing Time | – | |
| Hot Works Minimum | 1400 | 761 |
| Hot Works Maximum | 1600 | 872 |
Chemical Composition
| Cu (1) | Fe | Pb | Ni | P | Sn | Zn | |
| Min/Max | Rem. | .05 | .8 – 1.2 | .8 – 1.2 | .15 – .35 | .05 | .50 |
| Nominals | 97.8 | – | 1.0 | 1.0 | .2 | – | – |
Mechanical Properties
| Temper | Sect. Size | Cold Work | Type Min | Temp | Tensile Strength | YS 0.05% UL | YS 0.02% Offset | YS 0.005% Offset | Elong. | RH B | RH C | RH F | RH 30T | VH 500 | BH 500 | BH 3000 | Shear Strgth | Fatigue Strgth | Izod Impact Strgth |
| – | in. | % | – | F | ksi | ksi | ksi | ksi | % | B | C | F | 30T | 500 | 500 | 3000 | ksi | ksi | ft-lb |
| – | mm. | – | – | C | MPa | MPa | MPa | MPa | – | – | – | – | – | – | – | – | MPa | MPa | J |
| Rod | |||||||||||||||||||
| TL04 | 0.078 | 0 | TYP | 68 | 85 | 75 | – | – | 5 | – | – | – | – | – | – | – | – | – | 0.0 |
| – | 1.98 | – | – | 20 | 586 | 517 | – | – | 5 | – | – | – | – | – | – | – | – | – | 0.0 |
| WIRE | |||||||||||||||||||
| TL08 | 0.08 | 0 | TYP | 68 | 107 | 98 | – | – | 3 | – | – | – | – | – | – | – | – | – | 0.0 |
| – | 2.0 | – | – | 20 | 738 | 676 | – | – | 3 | – | – | – | – | – | – | – | – | – | 0.0 |
| TL02 | 0.08 | 0 | TYP | 68 | 86 | 70 | – | – | 7 | – | – | – | – | – | – | – | – | – | 0.0 |
| – | 2.0 | – | – | 20 | 593 | 483 | – | – | 7 | – | – | – | – | – | – | – | – | – | 0.0 |
| TF00 | 0.08 | 0 | TYP | 68 | 65 | 40 | – | – | 25 | – | – | – | – | – | – | – | – | – | 0.0 |
| – | 2.0 | – | – | 20 | 448 | 276 | – | – | 25 | – | – | – | – | – | – | – | – | – | 0.0 |
| TL04 | 0.08 | 0 | TYP | 68 | 95 | 75 | – | – | 5 | – | – | – | – | – | – | – | – | – | 0.0 |
| – | 2.0 | – | – | 20 | 655 | 517 | – | – | 5 | – | – | – | – | – | – | – | – | – | 0.0 |
| TL01 | 0.08 | 0 | TYP | 68 | 78 | 68 | – | – | 12 | – | – | – | – | — | – | – | – | – | 0.0 |
| – | 2 | – | – | 20 | 541 | 469 | – | – | 12 | – | – | – | – | – | – | – | – | – | 0.0 |
Physical Properties
| – | US Customary | Metric |
| Melting Point – Liquidus | 1980 F | 1082 C |
| Melting Point – Solidus | 1900 F | 1038 C |
| Density | 0.320 lb/in3 at 68 F | 8.88 gm/cm3 @ 20 C |
| Specific Gravity | 8.880 | 8.88 |
| Electrical Conductivity | 55 %IACS @ 68 F | 0.318 MegaSiemens/cm @ 20 C |
| Thermal Conductivity | 146 Btu . ft/(hr . ft2 . o F)at 68F | 253.0 W/m . o K at 20 C |
| Modulas of Elasticity in Tension | 18000 ksi | 124100 MPa |
| Modulus of Rigidity | 6000 ksi | 12410 MPa |
Fabrication
| Joining Technique | Suitability |
| Brazing | Good |
| Butt Weld | Fair |
| Capacity for Being Cold Worked | Good |
| Capacity for Being Hot Formed | Poor |
| Coated Metal Arc Welding | Not Recommended |
| Gas Sheilded Arc Welding | Not REcommended |
| Machinability rating | 80 |
| Oxyacetylene Welding | Not Recommended |
| Seam Weld | Not Recommended |
| Soldering | Excellent |
| Spot Weld | Not Recommended |
Applications & Industries where our C19160 Leaded Nickel Copper are used
Sunflex Metal Industries is a prominent supplier & exporter of C19160 Leaded Nickel Copper which is widely used in the following industries & applications:
C19160 Leaded Nickel Copper are mainly used in Electronics Connectors, Precision Machined Parts, Automotive Components, Industrial Equipment, Instrumentation, etc.
