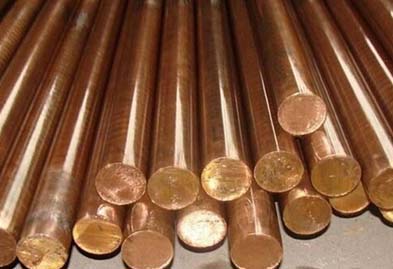

C18150 Copper Chromium Zirconium
RWMA Class III
C18150 copper chromium zirconium is a high-performance alloy renowned for its exceptional combination of strength, electrical conductivity, and wear resistance. This alloy is particularly valued in applications that require superior performance under high-stress and high-temperature conditions. C18150 offers excellent resistance to oxidation and corrosion, making it ideal for use in demanding environments such as aerospace, automotive, and industrial machinery. Its unique composition ensures reliable performance in electrical contacts, connectors, and high-load components.
At Sunflex Metal Industries, we specialize in providing top-quality C18150 copper chromium zirconium tailored to meet your specific needs. Our experienced team is dedicated to delivering superior alloy solutions and custom fabrications to enhance your projects. For more information about how C18150 can benefit your applications or to request a quote, please contact us at sales@sunflexfittings.com. Trust Sunflex Metal Industries for your high-performance copper alloy requirements.
C18150 Copper Chromium Zirconium uses:
C18150 copper chromium zirconium is a versatile alloy known for its excellent combination of strength, electrical conductivity, and durability. Here are some typical applications:
- Electrical Contacts and Connectors: C18150 is often used in electrical contacts and connectors due to its high conductivity and wear resistance, ensuring reliable performance in critical applications.
- High-Temperature Components: The alloy’s ability to maintain its properties under high heat makes it ideal for components exposed to extreme temperatures, such as those found in aerospace and industrial equipment.
- Automotive Components: In the automotive industry, C18150 is used for parts that need to endure high stress and elevated temperatures, including connectors, sensors, and high-load components.
- Industrial Machinery: C18150 is well-suited for use in industrial machinery parts, such as bushings, bearings, and gears, where its strength and durability can withstand heavy mechanical loads.
- Thermal Management Systems: The alloy’s thermal conductivity makes it a good choice for heat exchangers and other thermal management systems, where efficient heat dissipation is crucial.
- Welding and Soldering Equipment: C18150 is commonly used in welding and soldering tools due to its resistance to oxidation and its ability to maintain performance at high temperatures.
- Precision Instruments: The alloy is also employed in precision instruments where high reliability and long-lasting performance are essential, such as in measurement and control devices.
Chemical Composition
| Cr | Cu | Zr | |
| Min/Max | 0.5 – 1.5 | Rem | 0.05 – 0.25 |
| Nominals | 1.0000 | 98.9000 | 0.1000 |
Mechanical Properties
| RWMA CLASS (Alloy Number) | Chemical Composition | Hardness | Conductivity(%) | Tensile Strength |
| Class 2 (18200) | CR.60-1.2 | B70-83 | 80-85 | 50-70 ksi |
| Class 2 (18150) | Cr.50-1.5 / ZR.05-.25 | B70-83 | 80-85 | 50-70 ksi |
Physical Properties
| Product Property | US Customary | Metric |
| Coefficient of Thermal Expansion | 9.5 . 10-6 per oF (68-572 F) | 16.45 . 10 6? per å¡C (20-200 C) |
| Density | 0.321 lb/in3 @ 68 F | 8.89 gm/cm3 @ 20 C |
| Electrical Conductivity | 80 %IACS @ 68 F | 0.464 MegaSiemens/cm @ 20 C |
| Melting Point Liquid US | 1976 F | 1080 C |
| Melting Point Solid US | 1958 F | 1070 C |
| Modulas of Elasticity in Tension | 17000 ksi | 117200 MPa |
| Specific Gravity | 8.89 | 8.89 |
| Thermal Conductivity | 187.0 Btu . ft/(hr . ft2 . å¡F) @ 68 F | 323.9 W/m . å¡K at 20 C |
Fabrication
| Joining Technique | Suitability |
| Machinability Rating | 20 |
Applications & Industries where our C18150 Copper Chromium Zirconium are used
Sunflex Metal Industries is a prominent supplier & exporter of C18150 Copper Chromium Zirconium which is widely used in the following industries & applications:
C18150 Copper Chromium Zirconium are mainly used in Electrical Contacts and Connectors, High-Temperature Components, Automotive Components, Industrial Machinery, Thermal Management Systems, Welding and Soldering Equipment, Precision Instruments, etc.
