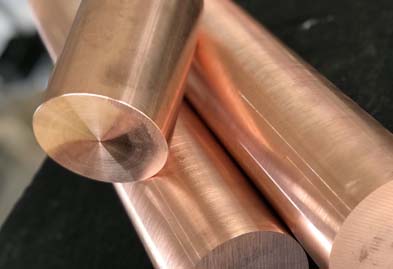

C10200 Oxygen Free Copper (CDA 102) Manufacturer and Supplier
UNS CDA 102, SAE J461, ASTM B152, ASTM B187, ASTM B272
C10200 Oxygen-Free Copper is a top-tier copper alloy known for its high purity and exceptional performance characteristics. With a purity level of 99.95% copper and an extremely low oxygen content, C10200 offers excellent electrical and thermal conductivity, making it ideal for critical applications in the electronics and electrical industries. This copper is produced in an oxygen-free environment, ensuring minimal contamination and high-quality consistency. Its superior ductility and corrosion resistance further enhance its suitability for a wide range of demanding industrial applications.
At Sunflex Metal Industries, we supply C10200 Oxygen-Free Copper to meet the exacting standards of your projects. Whether you require materials for high-efficiency electrical wiring, precision electronic components, or specialized industrial applications, our C10200 copper is engineered to deliver exceptional performance and reliability. For more information or to request a quote, please contact us at sales@sunflexfittings.com. Trust Sunflex Metal Industries for your premium copper solutions and ensure the success of your high-stakes projects.
C10200 Oxygen Free Copper Uses:
C10200 Oxygen-Free Copper is highly valued for its purity and excellent performance in various demanding applications. Typical uses include:
- Electrical Wiring and Conductors: Due to its high electrical conductivity, C10200 is ideal for high-efficiency wiring, busbars, and connectors.
- Electronic Components: Used in manufacturing circuit boards, semiconductor components, and other precision electronic devices where purity is critical.
- Telecommunications: Employed in the production of high-frequency and coaxial cables, which require minimal signal loss and high reliability.
- Medical Equipment: Utilized in medical imaging devices and other sensitive instruments requiring high conductivity and biocompatibility.
- Vacuum Applications: Perfect for use in high-vacuum environments such as particle accelerators and vacuum tubes due to its low gas content and minimal outgassing.
- Aerospace and Defense: Used in critical aerospace components and military applications that demand superior conductivity and corrosion resistance.
For more information or to request a quote for C10200 Oxygen-Free Copper, please contact Sunflex Metal Industries at sales@sunflexfittings.com.
Specifications
| End Product | Specification |
| RECTANGLES / FLAT BAR | 1/8″ – 2″ thick through 1/2″ – 8″ wide |
| SQUARE BAR | 1/4″ – 2″ Square |
| ROUND BAR | 3/16″ – 15″ Diameter |
| Bands, Projectile Rotating | MILITARY MIL-B-20292, MIL-B-18907 |
| Bar | AMS 4602, ASME SB152, SB133, ASTM B152, SAE J463, J461 |
| Bar, Bus | ASTM B187, SAE J463, J461 |
| Brazing Filler Metal | FEDERAL QQ-B-650 |
| Fittings | ASME B16.22 |
| Foil, Printed Circuits | ASTM B451 |
| Nipples | ASTM B687 |
| Pipe | ASME SB42, ASTM B698, B42 |
| Pipe, Bus | ASTM B188 |
| Plate | AMS 4501, ASME SB152, ASTM B152, SAE J463, J461 |
| Plate, Clad | ASTM B432 |
| Rod | AMS 4602, ASME SB152, ASTM B152, SAE J463, J461 |
| Rod, Bus | ASTM B187 |
| Shapes | AMS 4602, SAE J461, J463 |
| Shapes, Bus | ASTM B187 |
| Sheet | AMS 4501, ASME SB152, ASTM B152, SAE J461, J463 |
| Sheet, Clad | ASTM B506 |
| Sheet, Printed Circuits | ASTM B451 |
| Strip | AMS 4501, ASME SB152, ASTM B152, SAE J461, J463 |
| Strip, Clad | ASTM B506 |
| Strip, Printed Circuits | ASTM B451 |
| Tube | ASTM B698 |
| Tube, Air Conditioning and Refrigeration Field Service | SAE J461, J463 |
| Tube, Bus | ASTM B188 |
| Tube, Coils | ASTM B743 |
| Tube, Condenser | ASME SB111, ASTM B111 |
| Tube, Finned | ASME SB359, ASTM B359 |
| Tube, Rectangular Waveguide | ASTM B372, MILITARY MIL-W-85 |
| Tube, Seamless | ASME SB75, ASTM B641, B75, MILITARY MIL-T-24107 |
| Tube, Seamless Bright Annealed | ASTM B68 |
| Tube, Seamless for Air Conditioning and Refrigeration Field Service | SAE J461, J463 |
| Tube, Seamless for Torpedo Use | MILITARY MIL-T-3235 |
| Tube, U-Bend | ASME SB395, ASTM B395 |
| Tube, Welded | ASTM B716, B641, B447, MILITARY MIL-T-24107, SAE J461, J463 |
| Tube, Welded for Air Conditioning and Refrigeration Service | ASTM B640 |
| Wire, Coated With Lead Alloy | ASTM B189 |
| Wire, Coated With Nickel | ASTM B355 |
| Wire, Coated With Silver | ASTM B298 |
| Wire, Coated With Tin | ASTM B33, B246 |
| Wire, Flat | ASTM B272 |
| Wire, Hard Drawn | ASTM B1, FEDERAL QQ-W-343 |
| Wire, Medium-Hard Drawn | ASTM B2, FEDERAL QQ-W-343 |
| Wire, Metallizing | MILITARY MIL-W-6712 |
| Wire, Soft | AMS 4701, ASTM B3, B738, B48, F9, FEDERAL QQ-W-343 |
| Wire, Stranded | ASTM B8, B174, B470, B172, B173, B286, B496, B226, FEDERAL QQ-B-575 |
Chemical Composition
| Cu | O | |
| Min/Max | 99.95 min | 0.001 |
| Nominals | – | – |
Mechanical Properties
| Temper | Sect. Size | Cold Work | Type Min | Temp | Tensile Strength | YS 0.05% UL |
YS 0.02% Offset |
YS 0.005% Offset |
Elong. | RH B |
RH C |
RH F |
RH 30T |
VH 500 |
BH 500 |
BH 3000 |
Shear Strgth |
Fatigue Strgth |
Izod Impact Strgth |
| – | in. | % | – | F | ksi | ksi | ksi | ksi | % | B | C | F | 30T | 500 | 500 | 3000 | ksi | ksi | ft-lb |
| – | mm. | – | – | C | MPa | MPa | MPa | MPa | – | – | – | – | – | – | – | – | MPa | MPa | J |
| Flat Products | |||||||||||||||||||
| H02 | 0.04 | 68 | 42 | 36 | – | – | – | – | – | – | – | – | – | – | 26 | 13 | |||
| H02 | 1 | 0 | TYP | 20 | 290 | 248 | – | – | 14 | 40 | – | 84 | 50 | – | – | – | 179 | 90 | 0 |
| M20 | 0.25 | 68 | 32 | 10 | – | – | – | – | – | – | – | – | – | – | 22 | – | |||
| M20 | 6.35 | 0 | TYP | 20 | 221 | 69 | – | – | 50 | – | – | 40 | – | – | – | – | 152 | – | 0 |
| H04 | 0.25 | 68 | 50 | 45 | – | – | – | – | – | – | – | – | – | – | 28 | – | |||
| H04 | 6.35 | 0 | TYP | 20 | 345 | 310 | – | – | 12 | 50 | – | 90 | – | – | – | – | 193 | – | 0 |
| H10 | 0.04 | 68 | 57 | 53 | – | – | – | – | – | – | – | – | – | – | 29 | – | |||
| H10 | 1 | 0 | TYP | 20 | 393 | 365 | – | – | 4 | 62 | – | 95 | 64 | – | – | – | 200 | – | 0 |
| H01 | 0.04 | 68 | 38 | 30 | – | – | – | – | – | – | – | – | – | – | 25 | – | |||
| H01 | 1 | 0 | TYP | 20 | 262 | 207 | – | – | 25 | 25 | – | 70 | 36 | – | – | – | 172 | – | 0 |
| H00 | 0.04 | 68 | 36 | 28 | – | – | – | – | – | – | – | – | – | – | 25 | – | |||
| H00 | 1 | 0 | TYP | 20 | 248 | 193 | – | – | 30 | 10 | – | 60 | 25 | – | – | – | 172 | – | 0 |
| OS025 | 0.04 | 68 | 34 | 11 | – | – | – | – | – | – | – | – | – | – | 23 | 11 | |||
| OS025 | 1 | 0 | TYP | 20 | 234 | 76 | – | – | 45 | – | – | 45 | – | – | – | – | 159 | 76 | 0 |
| H04 | 1 | 68 | 45 | 40 | – | – | – | – | – | – | – | – | – | – | 26 | – | |||
| H04 | 25.4 | 0 | TYP | 20 | 310 | 276 | – | – | 20 | 45 | – | 85 | – | – | – | – | 179 | – | 0 |
| OS050 | 0.25 | 68 | 32 | 10 | – | – | – | – | – | – | – | – | – | – | 22 | – | |||
| OS050 | 6.35 | 0 | TYP | 20 | 221 | 69 | – | – | 50 | – | – | 40 | – | – | – | – | 152 | – | 0 |
| H00 | 0.25 | 68 | 36 | 28 | – | – | – | – | – | – | – | – | – | – | 25 | – | |||
| H00 | 6.35 | 0 | TYP | 20 | 248 | 193 | – | – | 40 | 10 | – | 60 | – | – | – | – | 172 | – | 0 |
| H04 | 0.04 | 68 | 50 | 45 | – | – | – | – | – | – | – | – | – | – | 28 | – | |||
| H04 | 1 | 0 | TYP | 20 | 345 | 310 | – | – | 6 | 50 | – | 90 | 57 | – | – | – | 193 | – | 0 |
| H08 | 0.04 | 68 | 55 | 50 | – | – | – | – | – | – | – | – | – | – | 29 | 14 | |||
| H08 | 1 | 0 | TYP | 20 | 379 | 345 | – | – | 4 | 60 | – | 94 | 63 | – | – | – | 200 | 97 | 0 |
| H01 | 0.25 | 68 | 38 | 30 | – | – | – | – | – | – | – | – | – | – | 25 | – | |||
| H01 | 6.35 | 0 | TYP | 20 | 262 | 207 | – | – | 35 | 25 | – | 70 | – | – | – | – | 172 | – | 0 |
| M20 | 0.04 | 68 | 34 | 10 | – | – | – | – | – | – | – | – | – | – | 23 | – | |||
| M20 | 1 | 0 | TYP | 20 | 234 | 69 | – | – | 45 | – | – | 45 | – | – | – | – | 159 | – | 0 |
| OS050 | 0.04 | 68 | 32 | 10 | – | – | – | – | – | – | – | – | – | – | 22 | – | |||
| OS050 | 1 | 0 | TYP | 20 | 221 | 69 | – | – | 45 | – | – | 40 | – | – | – | – | 152 | – | 0 |
| Rod | |||||||||||||||||||
| OS050 | 1 | 68 | 32 | 10 | – | – | – | – | – | – | – | – | – | – | 22 | – | |||
| OS050 | 25.4 | 0 | TYP | 20 | 221 | 69 | – | – | 55 | – | – | 40 | – | – | – | – | 152 | – | 0 |
| H04 | 0.25 | 68 | 55 | 50 | – | – | – | – | – | – | – | – | – | – | 29 | – | |||
| H04 | 6.35 | 40 | TYP | 20 | 379 | 345 | – | – | 10 | 60 | – | 94 | – | – | – | – | 200 | – | 0 |
| H04 | 2.01 | 68 | 45 | 40 | – | – | – | – | – | – | – | – | – | – | 26 | – | |||
| H04 | 51 | 16 | TYP | 20 | 310 | 276 | – | – | 20 | 45 | – | 85 | – | – | – | – | 179 | – | 0 |
| H04 | 1 | 68 | 48 | 44 | – | – | – | – | – | – | – | – | – | – | 27 | – | |||
| H04 | 25.4 | 35 | TYP | 20 | 331 | 303 | – | – | 16 | 47 | – | 87 | – | – | – | – | 186 | – | 0 |
| M20 | 1 | 68 | 32 | 10 | – | – | – | – | – | – | – | – | – | – | 22 | – | |||
| M20 | 25.4 | 0 | TYP | 20 | 221 | 69 | – | – | 55 | – | – | 40 | – | – | – | – | 152 | – | 0 |
| Shapes | |||||||||||||||||||
| M30 | 0.5 | 68 | 32 | 10 | – | – | – | – | – | – | – | – | – | – | 22 | – | |||
| M30 | 12.7 | 0 | TYP | 20 | 221 | 69 | – | – | 50 | – | – | 40 | – | – | – | – | 152 | – | 0 |
| M20 | 0.5 | 68 | 32 | 10 | – | – | – | – | – | – | – | – | – | – | 22 | – | |||
| M20 | 12.7 | 0 | TYP | 20 | 221 | 69 | – | – | 40 | – | – | 40 | – | – | – | – | 152 | – | 0 |
| H04 | 0.5 | 68 | 40 | 32 | – | – | – | – | – | – | – | – | – | – | 26 | – | |||
| H04 | 12.7 | 15 | TYP | 20 | 276 | 221 | – | – | 30 | 35 | – | – | – | – | – | – | 179 | – | 0 |
| OS050 | 0.5 | 68 | 32 | 10 | – | – | – | – | – | – | – | – | – | – | 22 | – | |||
| OS050 | 12.7 | 0 | TYP | 20 | 221 | 69 | – | – | 50 | – | – | 40 | – | – | – | – | 152 | – | 0 |
| Tube | |||||||||||||||||||
| OS025 | 0.06 | 68 | 34 | 11 | – | – | – | – | – | – | – | – | – | – | 23 | – | |||
| OS025 | 1.65 | 0 | TYP | 20 | 234 | 76 | – | – | 45 | – | – | 45 | – | – | – | – | 159 | – | 0 |
| H80 | 0.06 | 68 | 55 | 50 | – | – | – | – | – | – | – | – | – | – | 29 | – | |||
| H80 | 1.65 | 40 | TYP | 20 | 379 | 345 | – | – | 8 | 60 | – | 95 | 63 | – | – | – | 200 | – | 0 |
| H55 | 0.06 | 68 | 40 | 32 | – | – | – | – | – | – | – | – | – | – | 26 | – | |||
| H55 | 1.65 | 15 | TYP | 20 | 276 | 221 | – | – | 25 | 35 | – | 77 | 45 | – | – | – | 179 | – | 0 |
| OS050 | 0.06 | 68 | 32 | 10 | – | – | – | – | – | – | – | – | – | – | 22 | – | |||
| OS050 | 1.65 | 0 | TYP | 20 | 221 | 69 | – | – | 45 | – | – | 40 | – | – | – | – | 152 | – | 0 |
| Wire | |||||||||||||||||||
| H04 | 0.08 | 68 | 55 | – | – | – | – | – | – | – | – | – | – | – | 29 | – | |||
| H04 | 2 | 0 | TYP | 20 | 379 | – | – | – | 1 | – | – | – | – | – | – | – | 200 | – | 0 |
| OS050 | 0.08 | 68 | 35 | – | – | – | – | – | – | – | – | – | – | – | 24 | – | |||
| OS050 | 2 | 0 | TYP | 20 | 241 | – | – | – | 35 | – | – | – | – | – | – | – | 165 | – | 0 |
| H08 | 0.08 | 68 | 66 | – | – | – | – | – | – | – | – | – | – | – | 33 | – | |||
| H08 | 2 | 0 | TYP | 20 | 455 | – | – | – | 1 | – | – | – | – | – | – | – | 228 | – | 0 |
Physical Properties
| Product Property | US Customary | Metric |
| Coefficient of Thermal Expansion | 9.4 . 10 6? per å¡F (68-212 F) | 16.9 . 10 6? per å¡C (20-100 C) |
| Coefficient of Thermal Expansion | 9.6 . 10 6? per å¡F (68-392 F) | 17.3 . 10 6? per å¡C (20-200 C) |
| Coefficient of Thermal Expansion | 9.8 . 10 6? per å¡F (68-572 F) | 17.6 . 10 6? per å¡C (20-300 C) |
| Density | 0.323 lb/in3 @ 68 F | 8.94 gm/cm3 @ 20 C |
| Electrical Conductivity | 101%IACS @ 68 F | 0.591 MegaSiemens/cm @ 20 C |
| Electrical Resistivity | 10.3 ohms-cmil/ft @ 68 F | 1.71 microhm-cm @ 20 C |
| Melting Point Liquid US | 1981 F | 1083 C |
| Melting Point Solid US | 1981 F | 1083 C |
| Modulas of Elasticity in Tension | 17000 ksi | 117000 MPa |
| Modulas of Rigidity | 6400 ksi | 44130 MPa |
| Specific Gravity | 8.94 | 8.94 |
| Specific Heat Capacity | 0.092 Btu/lb/å¡F at 68 F | 393.5 J/kg . å¡K at 293 K |
| Thermal Conductivity | 226.0 Btu . ft/(hr . Ft2 . å¡F) at 68 F | 391.1W/m . å¡K at 20 C |
Fabrication
| Joining Technique | Suitability |
| Brazing | Excellent |
| Butt Weld | Good |
| Capacity for Being Cold Worked | Excellent |
| Capacity for Being Hot Formed | Excellent |
| Coated Metal Arc Welding | Not Recommended |
| Forgeability Rating | 65 |
| Gas Sheilded Arc Welding | Good |
| Machinability rating | 20 |
| Oxyacetylene Welding | Fair |
| Seam Weld | Not Recommended |
| Soldering | Excellent |
| Spot Weld | Not Recommended |
Applications & Industries where our C10200 Oxygen Free Copper are used
Sunflex Metal Industries is a prominent supplier & exporter of C10200 Oxygen Free Copper which is widely used in the following industries & applications:
C10200 Oxygen Free Copper (CDA 102) are mainly used in Electrical Wiring and Conductors, Electronic Components, Telecommunications, Medical Equipment, Vacuum Applications, Aerospace and Defense, etc.
