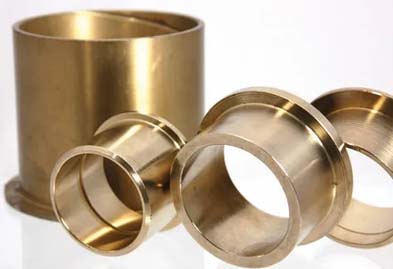

AMS 4880 Nickel Aluminum Bronze 'E'
AMS 4880 Nickel Aluminum Bronze is a top choice for landing gear bushing materials, alongside AMS 4640. At Sunflex Metal Industries, our AMS 4880 is continuously cast and heat-treated, offering exceptional mechanical properties that often surpass those of AMS 4640. One significant advantage of our AMS 4880 is its availability in hollow bar form, resulting in substantial cost savings due to weight reduction and minimized scrap. We also offer rough machined blanks in this alloy to further reduce waste. Contact us with your drawings to explore how AMS 4880 can benefit your applications.
Selecting Sunflex Metal Industries gives you access to premium AMS 4880 Nickel Aluminum Bronze that is skillfully made to satisfy demanding industrial requirements. Further assisting in waste reduction and streamlining your manufacturing process are our rough machined blanks. Reach out to us at sales@sunflexfittings.com to talk about your unique needs and take advantage of our affordable prices and customized solutions. For your next project, let Sunflex Metal Industries help you choose the ideal AMS 4880 Nickel Aluminum Bronze product.
AMS 4880 Nickel Aluminum Bronze uses:
- Landing Gear Bushings: Ideal for aerospace applications due to its high strength and durability.
- Marine Hardware: Excellent resistance to corrosion in seawater environments.
- Pump and Valve Components: Suitable for parts exposed to high pressure and corrosive conditions.
- Industrial Machinery: Used in gears, bearings, and bushings that require wear resistance and strength.
- Oil and Gas Equipment: Perfect for components in extreme environments needing high corrosion resistance.
- Heavy Equipment: Employed in bushings and wear plates for heavy-duty applications.
- Hydraulic Components: Utilized in hydraulic machinery for its superior mechanical properties.
Specifications
| Product Type | Temper Type |
| Centrifugal | ASTM B271, SAE J462, J461, AMS 4880 |
| Continuous | ASTM B505, SAE J462, J461, AMS 4880 |
| Ingot | ASTM B30 |
| Precision | ASTM B806 |
| Sand | ASTM B148, B763, SAE J461, J462 |
Chemical Composition
| Al | Cu | Fe | Mn | Ni | Sn | Zn | |
| Min/Max | 9.7-10.9 | 78.0 min | 2.0-3.5 | 1.5 | 4.5-5.5 | .20 | .30 |
| Nominals | 10.3 | – | 2.7 | – | 5.0 | – | – |
Physical Properties
| Product Property | US Customary | Metric |
| Coefficient of Thermal Expansion | 90 10-6 per oF (68-572 F) | 16.2 . 10-6 per oC (20-300 C) |
| Density | 0.272 lb/in3 at 68 F | 7.53 gm/cm3 @ 20 C |
| Electrical Conductivity | 8.5 %IACS @ 68 F | 0.049 MegaSiemens/cm @ 20 C |
| Electrical Resistivity | 122.8 ohms-cmil/ft @ 68 F | 20.41 microhm-cm @ 20 C |
| Magnetic Permeability (As Cast) | 1.32 | 1.32 |
| Magnetic Permeability (TQ50 temper) | 1.2 | 1.2 |
| Melting Point – Liquidus | 1930 F | 1054 C |
| Melting Point – Solidus | 1900 F | 1038 C |
| Modulas of Elasticity in Tension | 16000 ksi | 110000 MPa |
| Poisson’s Ratio | 0.32 | 0.32 |
| Specific Gravity | 7.53 | 7.53 |
| Specific Heat Capacity | 0.1 Btu/lb/oF at 68 F | 419.0 J/kg . oK at 293 K |
| Thermal Conductivity | 24.2 Btu . ft/(hr . ft2 . oF)at 68F | 41.9 W/m . oK at 20 C |
Fabrication
| Joining Technique | Suitability |
| Brazing | Good |
| Coated Metal Arc Welding | Not Recommended |
| Gas Shielded Arc Welding | Not Recommended |
| Machinability Rating | 50% |
| Oxyacetylene Welding | Not Recommended |
| Soldering | Excellent |
Applications & Industries where our AMS 4880 Nickel Aluminum Bronze are used
Sunflex Metal Industries is a prominent supplier & exporter of AMS 4534 Beryllium Copper which is widely used in the following industries:
AMS 4880 Nickel Aluminum Bronze is widely used in Aerospace Industry, Marine Industry, Oil and Gas Industry, Industrial Machinery, Heavy Equipment Manufacturing, Hydraulic Components Industry, etc.
