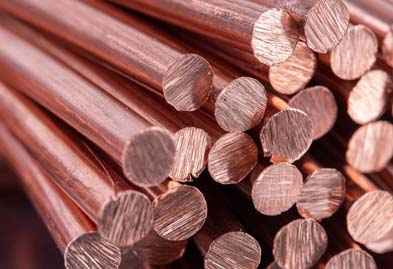

AMS 4533 Beryllium Copper
ASTM B196, AMS 4533, RWMA CLASS IV
Beryllium copper is the most widely used type of copper and is distinguished by having the highest strength and hardness when compared to commercial copper alloys. It is comparable to steel in terms of hardness and strength. At their maximal age, the AMS4533 ultimate tensile and Rockwell hardness parameters are 200 ksi and RC 45, accordingly (electrical conduction 22% IACS minimal).
At Sunflex Metal Industries, we are dedicated to offering top-quality AMS 4533 Copper Products customized to suit your unique industrial requirements. Available in a range of sizes and specifications, our AMS 4533 beryllium Copper products guarantee durability, reliability, and exceptional long-term performance. Reach out to us today at sales@sunflexfittings.com to discuss your needs and benefit from our expert solutions and competitive pricing.
AMS 4533 Beryllium Copper’s uses:
AMS 4533 Beryllium Copper is known for its excellent mechanical properties and high strength combined with non-magnetic and non-sparking characteristics. Typical uses for AMS 4533 Beryllium Copper include:
- Aerospace Components: Due to its high strength-to-weight ratio and resistance to fatigue and wear.
- Electrical Contacts and Connectors: Provides excellent conductivity and is resistant to corrosion.
- Oil and Gas Industry: Used in down-hole drilling tools and non-sparking tools.
- Automotive Industry: Ideal for components requiring high strength and resistance to corrosion, such as valve seats and guides.
- Precision Instruments: Suitable for applications requiring high precision and stability, such as gyroscopes and inertial navigation systems.
- Molds and Dies: Due to its excellent machinability and wear resistance.
- Marine Applications: Resistant to saltwater corrosion, making it suitable for various marine hardware and equipment.
- Medical Equipment: Used in manufacturing tools and components that require non-magnetic properties.
Specifications
| End Product | Specification |
| Bar | AMS 4650, 4651, 4533, ASTM B194, B196, MILITARY MIL-C-21657, SAE J463, J461 |
| Extrusions | ASTM B570 |
| Forgings | AMS 4650, ASTM B570 |
| Plate | ASTM B194 |
| Rod | AMS 4650, 4534, 4533, 4651, ASTM B196, MILITARY MIL-C-21657, SAE J463, J461 |
| Rod, Forging | AMS 4650 |
| Sheet | ASTM B194 |
| Strip | ASTM B194, SAE J463, J461 |
| Tube, Seamless | AMS 4535, ASTM B643 |
| Wire | AMS 4725, ASTM B197, SAE J463, J461 |
Chemical Composition
| Al | Be | Co | Cu | Si | |
| Min/Max | 0.2 | 1.8 – 2.0 | 0.20 min | Rem | 0.2 |
| Nominals | – | 1.9000 | – | 98.1000 | – |
Mechanical Properties
| Temper | Sect. Size | Cold Work | Type Min | Temp | Tensile Strength | YS 0.05% UL | YS 0.02% Offset | YS 0.005% Offset | Elong. | RH B | RH C | RH F | RH 30T | VH 500 | BH 500 | BH 3000 | Shear Strgth | Fatigue Strgth | Izod Impact Strgth |
| – | in. | % | – | F | ksi | ksi | ksi | ksi | % | B | C | F | 30T | 500 | 500 | 3000 | ksi | ksi | ft-lb |
| – | mm. | – | – | C | MPa | MPa | MPa | MPa | – | – | – | – | – | – | – | – | MPa | MPa | J |
| FLAT PRODUCTS | |||||||||||||||||||
| TM05 | 0 | 68 | 149 | – | 125 | – | – | – | – | – | – | – | – | – | – | – | |||
| TM05 | 0 | 0 | MIN | 20 | 1030 | – | 860 | – | 9 | – | 31 | – | – | – | – | – | – | – | 0 |
| TM08 | 0.19 | 68 | 182 | – | 160 | – | – | – | – | – | – | – | – | – | – | – | |||
| TM08 | 4.78 | 0 | TYP | 20 | 1255 | – | 1103 | – | 6 | – | – | – | – | – | – | – | – | – | 0 |
| TD02 | 0.19 | 68 | 92 | – | 82 | – | – | – | – | – | – | – | – | – | – | – | |||
| TD02 | 4.78 | 0 | TYP | 20 | 634 | – | 565 | – | 15 | 92 | – | – | 77 | – | – | – | – | – | 0 |
| TF00 | 0.19 | 68 | 175 | – | 155 | – | – | – | – | – | – | – | – | – | – | 36 | |||
| TF00 | 4.78 | 0 | TYP | 20 | 1207 | – | 1069 | – | 6 | – | 38 | – | – | – | – | – | – | 248 | 0 |
| TM06 | 0.19 | 68 | 168 | – | 148 | – | – | – | – | – | – | – | – | – | – | – | |||
| TM06 | 4.75 | 0 | TYP | 20 | 1158 | – | 1020 | – | 7 | – | 37 | – | – | – | – | – | – | – | 0 |
| TH04 | 0.19 | 68 | 200 | – | 180 | – | – | – | – | – | – | – | – | – | – | 45 | |||
| TH04 | 4.78 | 0 | TYP | 20 | 1379 | – | 1241 | – | 2 | – | 42 | – | – | – | – | – | – | 307 | 0 |
| TM02 | 0.19 | 68 | 128 | – | 105 | – | – | – | – | – | – | – | – | – | – | – | |||
| TM02 | 4.78 | 0 | TYP | 20 | 883 | – | 724 | – | 15 | – | 27 | – | – | – | – | – | – | – | 0 |
| TM00 | 0.19 | 68 | 105 | – | 82 | – | – | – | – | – | – | – | – | – | – | – | |||
| TM00 | 4.78 | 0 | TYP | 20 | 724 | – | 565 | – | 20 | – | 27 | – | – | – | – | – | – | – | 0 |
| TB00 | 0 | 68 | 70 | – | 32 | – | – | – | – | – | – | – | – | – | – | – | |||
| TB00 | 0 | 0 | TYP | 20 | 483 | – | 221 | – | 45 | 60 | – | – | 58 | – | – | – | – | – | 0 |
| TH02 | 0.19 | 68 | 195 | – | 175 | – | – | – | – | – | – | – | – | – | – | 44 | |||
| TH02 | 4.78 | 0 | TYP | 20 | 1344 | – | 1207 | – | 3 | – | 41 | – | – | – | – | – | – | 303 | 0 |
| TM04 | 0.19 | 68 | 142 | – | 122 | – | – | – | – | – | – | – | – | – | – | – | |||
| TM04 | 4.78 | 0 | TYP | 20 | 979 | – | 841 | – | 12 | – | 32 | – | – | – | – | – | – | – | 0 |
| TD04 | 0.19 | 68 | 110 | – | 104 | – | – | – | – | – | – | – | – | – | – | – | |||
| TD04 | 4.78 | 0 | TYP | 20 | 756 | – | 717 | – | 5 | 99 | – | 81 | – | – | – | – | – | – | 0 |
| TM01 | 0.19 | 68 | 115 | – | 89 | – | – | – | – | – | – | – | – | – | – | – | |||
| TM01 | 4.78 | 0 | TYP | 20 | 793 | – | 614 | – | 17 | – | 23 | – | – | – | – | – | – | – | 0 |
| TH01 | 0.19 | 68 | 185 | – | 165 | – | – | – | – | – | – | – | – | – | – | 40 | |||
| TH01 | 4.78 | 0 | TYP | 20 | 1276 | – | 1138 | – | 4 | – | 40 | – | – | – | – | – | – | 276 | 0 |
| TD01 | 0.19 | 68 | 80 | – | 70 | – | – | – | – | – | – | – | – | – | – | – | |||
| TD01 | 4.78 | 0 | TYP | 20 | 552 | – | 483 | – | 25 | 80 | – | – | 70 | – | – | – | – | – | 0 |
| ROD | |||||||||||||||||||
| TB00 | 0 | 68 | 72 | – | 20 | – | – | – | – | – | – | – | – | – | – | – | |||
| TB00 | 0 | 0 | TYP | 20 | 496 | – | 138 | – | 20 | 65 | – | – | – | – | – | – | – | – | 0 |
| TD04 | 3 | 68 | 103 | – | 75 | – | – | – | – | – | – | – | – | – | – | – | |||
| TD04 | 76.2 | 0 | TYP | 20 | 710 | – | 517 | – | 8 | 94 | – | – | – | – | – | – | – | – | 0 |
| TF00 | 3 | 68 | 182 | – | 130 | – | – | – | – | – | – | – | – | – | – | – | |||
| TF00 | 76.2 | 0 | TYP | 20 | 1255 | – | 896 | – | 3 | – | 39 | – | – | – | – | – | – | – | 0 |
| TH04 | 0.38 | 68 | 405 | – | 315 | – | – | – | – | – | – | – | – | – | – | – | |||
| TH04 | 9.53 | 0 | TYP | 20 | 2792 | – | 2172 | – | 4 | – | 83 | – | – | – | – | – | – | – | 0 |
| TD04 | 0.38 | 68 | 110 | – | 75 | – | – | – | – | – | – | – | – | – | – | – | |||
| TD04 | 9.53 | 0 | TYP | 20 | 758 | – | 517 | – | 8 | 95 | – | – | – | – | – | – | – | – | 0 |
| TD04 | 1 | 68 | 108 | – | 75 | – | – | – | – | – | – | – | – | – | – | – | |||
| TD04 | 25.4 | 0 | TYP | 20 | 745 | – | 517 | – | 8 | 95 | – | – | – | – | – | – | – | – | 0 |
| TF00 | 0 | 68 | 182 | – | 145 | – | – | – | – | – | – | – | – | – | – | – | |||
| TF00 | 0 | 0 | TYP | 20 | 1255 | – | 1000 | – | 4 | – | 39 | – | – | – | – | – | – | – | 0 |
| TH04 | 3 | 68 | 195 | – | 145 | – | – | – | – | – | – | – | – | – | – | – | |||
| TH04 | 76.2 | 0 | TYP | 20 | 1344 | – | 1000 | – | 4 | – | 41 | – | – | – | – | – | – | – | 0 |
| WIRE | |||||||||||||||||||
| TF00 | 0 | 68 | 178 | – | 160 | – | – | – | – | – | – | – | – | – | – | – | |||
| TF00 | 0 | 0 | TYP | 20 | 1227 | – | 1103 | – | 3 | – | – | – | – | – | – | – | – | – | 0 |
| TD04 | 0 | 68 | 152 | – | 125 | – | – | – | – | – | – | – | – | – | – | – | |||
| TD04 | 0 | 0 | TYP | 20 | 1048 | – | 862 | – | 1 | – | – | – | – | – | – | – | – | – | 0 |
| TD02 | 0 | 68 | 122 | – | 100 | – | – | – | – | – | – | – | – | – | – | – | |||
| TD02 | 0 | 0 | TYP | 20 | 841 | – | 689 | – | 5 | – | – | – | – | – | – | – | – | – | 0 |
| TH03 | 0 | 68 | 210 | – | 190 | – | – | – | – | – | – | – | – | – | – | – | |||
| TH03 | 0 | 0 | TYP | 20 | 1448 | – | 1310 | – | 1 | – | – | – | – | – | – | – | – | – | 0 |
| TH04 | 0 | 68 | 212 | – | 195 | – | – | – | – | – | – | – | – | – | – | – | |||
| TH04 | 0 | 0 | TYP | 20 | 1462 | – | 1344 | – | 1 | – | – | – | – | – | – | – | – | – | 0 |
| TH02 | 0 | 68 | 200 | – | 185 | – | – | – | – | – | – | – | – | – | – | – | |||
| TH02 | 0 | 0 | TYP | 20 | 1379 | – | 1276 | – | 1 | – | – | – | – | – | – | – | – | – | 0 |
| TB00 | 0 | 68 | 68 | – | 28 | – | – | – | – | – | – | – | – | – | – | – | |||
| TB00 | 0 | 0 | TYP | 20 | 469 | – | 193 | – | 35 | – | – | – | – | – | – | – | – | – | 0 |
| TD03 | 0 | 68 | 142 | – | 120 | – | – | – | – | – | – | – | – | – | – | – | |||
| TD03 | 0 | 0 | TYP | 20 | 979 | – | 827 | – | 2 | – | – | – | – | – | – | – | – | – | 0 |
| TH01 | 0 | 68 | 190 | – | 175 | – | – | – | – | – | – | – | – | – | – | – | |||
| TH01 | 0 | 0 | TYP | 20 | 1310 | – | 1207 | – | 2 | – | – | – | – | – | – | – | – | – | 0 |
| TD01 | 0 | 68 | 102 | – | 82 | – | – | – | – | – | – | – | – | – | – | – | |||
| TD01 | 0 | 0 | TYP | 20 | 703 | – | 565 | – | 10 | – | – | – | – | – | – | – | – | – | 0 |
Physical Properties
| Product Property | US Customary | Metric |
| Coefficient of Thermal Expansion | 9.9 . 10-6 per å¡F (68-572 F) | 17.8 . 10 6? per å¡C (20-300 C) |
| Density | 0.298 lb/in3 @ 68 F | 8.25 gm/cm3 @ 20 C |
| Electrical Conductivity | 22 %IACS @ 68 F | 0.129 MegaSiemens/cm @ 20 C |
| Electrical Resistivity | 46.2 ohms-cmil/ft @ 68 F | 7.68 microhm-cm @ 20 C |
| Melting Point Liquid US | 1800 F | 982 C |
| Melting Point Solid US | 1590 F | 866 C |
| Modulas of Elasticity in Tension | 18500 ksi | 128000 MPa |
| Modulas of Rigidity | 7300 ksi | 50330 MPa |
| Specific Gravity | 8.26 | 8.26 |
| Specific Heat Capacity | 0.1 Btu/lb/å¡F @ 68 F | 419.0 J/kg . å¡K at 293 K |
| Thermal Conductivity | 62.0 Btu . ft/(hr . ft2 . å¡F) @ 68 F | 107.3 W/m . å¡K at 20 C |
Fabrication
| Joining Technique | Suitability |
| Brazing | Good |
| Butt Weld | Fair |
| Capacity for Being Cold Worked | Good |
| Capacity for Being Hot Formed | Excellent |
| Coated Metal Arc Welding | Good |
| Forgeability Rating | 40 |
| Gas Sheilded Arc Welding | Good |
| Machinability rating | 20 |
| Oxyacetylene Welding | Not Recommended |
| Seam Weld | Fair |
| Soldering | Good |
| Spot Weld | Good |
Applications & Industries where our AMS 4533 Beryllium Copper are used
Sunflex Metal Industries is a prominent supplier & exporter of AMS 4533 Beryllium Copper which is widely used in the following industries & applications:
AMS 4533 Beryllium Copper are mainly used in aerospace, electrical, automotive, industrial machinery, telecommunications, marine industry, fasteners, pumps, welding equipment, rolling mill parts, valve seats, firing pins, bushings, springs, wear plates on heavy equipment, spline shafts, bearings, etc.
